QSFP/LSZH

QSFP/LSZH

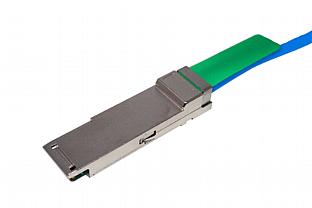

QSFP/LSZH cables provide low smoke, halogen free connectivity for 40Gb InfiniBand and high speed data center applications requiring enhanced fire safety. These assemblies use QSFP and QSFP+ copper DAC designs to support QDR, DDR, and SDR rates while maintaining reliable signal integrity. Their LSZH jacket construction makes them suitable for public buildings, enterprise facilities, and confined spaces where reduced smoke and toxicity are essential. Multiple lengths and configurations ensure dependable performance across demanding networking environments with support from DataStorageCables.

Our products

  • C9797 blue

    QSFP+ / QSFP+, 40GB Infiniband (QDR/DDR/SDR), LSZH

    QSFP+ to QSFP+, copper DAC, with a halogen-free LSZH jacket

    Purchase

    Item ID

    C9797-M-LS
    $0.00

    Quantity

    • QSFP+ - QSFP+, 0.5 Meter, 28awg, LSZH
      The C9797-.5M-LS is a 0.5 meter QSFP+ (SFF-8436) to QSFP+(SFF-8436) cable, manufactured with Amphenol 28AWG Low Smoke Zero Halogen 4X cable.This cable is used for CX4 and Infiniband applications, and is RoHS compliant.
      C9797-.5M-LS

      Cable Length

      0.5M

      Connector 1

      QSFP+ SFF-8436 Passive

      Connector 2

      QSFP+ SFF-8436 Passive

      RoHS Compliant

      Yes

      Wire Gauge

      28AWG
    • QSFP+ - QSFP+, 1 Meter, 28awg, LSZH
      The C9797-1M-LS is a 1 meter QSFP+ (SFF-8436) to QSFP+(SFF-8436) cable, manufactured with Amphenol 28AWG Low Smoke Zero Halogen 4X cable.This cable is used for CX4 and Infiniband applications, and is RoHS compliant.
      C9797-1M-LS

      Cable Length

      1M

      Connector 1

      QSFP+ SFF-8436 Passive

      Connector 2

      QSFP+ SFF-8436 Passive

      RoHS Compliant

      Yes

      Wire Gauge

      28AWG
    • QSFP+ - QSFP+, 2 Meter, 28awg, LSZH
      The C9797-2M-LS is a 2 meter QSFP+ (SFF-8436) to QSFP+(SFF-8436) cable, manufactured with Amphenol 28AWG Low Smoke Zero Halogen 4X cable.This cable is used for CX4 and Infiniband applications, and is RoHS compliant.
      C9797-2M-LS

      Cable Length

      2M

      Connector 1

      QSFP+ SFF-8436 Passive

      Connector 2

      QSFP+ SFF-8436 Passive

      RoHS Compliant

      Yes

      Wire Gauge

      28AWG
    • QSFP+ - QSFP+, 3 Meter, 28awg, LSZH
      The C9797-3M-LS is a 3 meter QSFP+ (SFF-8436) to QSFP+(SFF-8436) cable, manufactured with Amphenol 28AWG Low Smoke Zero Halogen 4X cable.This cable is used for CX4 and Infiniband applications, and is RoHS compliant.
      C9797-3M-LS

      Cable Length

      3M

      Connector 1

      QSFP+ SFF-8436 Passive

      Connector 2

      QSFP+ SFF-8436 Passive

      RoHS Compliant

      Yes

      Wire Gauge

      28AWG
